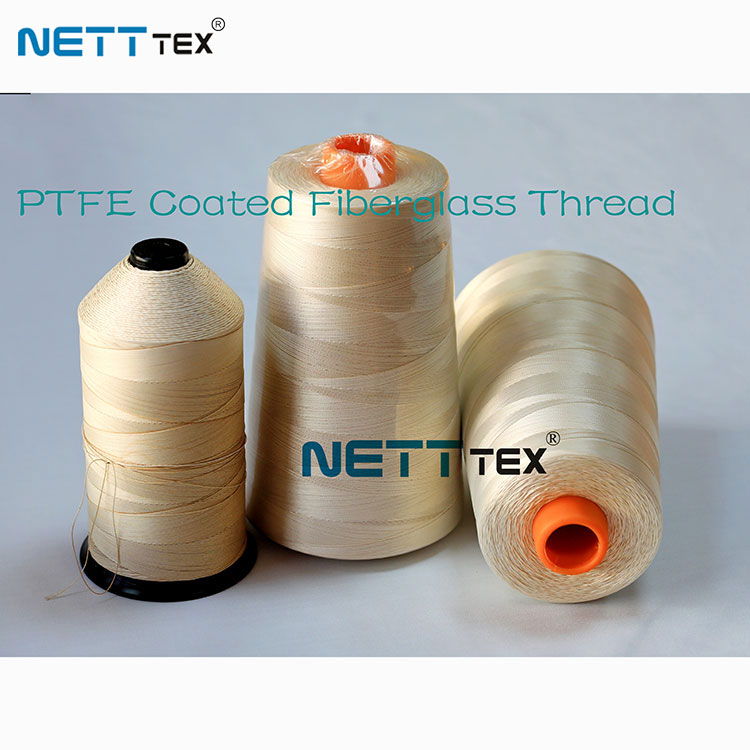

PTFE Coated Fiberglass Thread
  • PTFE Coated Fiberglass ThreadPTFE Coated Fiberglass Thread
  • PTFE Coated Fiberglass ThreadPTFE Coated Fiberglass Thread
  • PTFE Coated Fiberglass ThreadPTFE Coated Fiberglass Thread
  • PTFE Coated Fiberglass ThreadPTFE Coated Fiberglass Thread
  • PTFE Coated Fiberglass ThreadPTFE Coated Fiberglass Thread
  • PTFE Coated Fiberglass ThreadPTFE Coated Fiberglass Thread

PTFE Coated Fiberglass Thread

NETT is a professional leader China PTFE Coated Fiberglass Thread, PTFE sewing thread,PVDF Multi Filament manufacturer with high quality and reasonable price. Welcome to contact us.

Send Inquiry

Product Description

Introduction


NETT is a professional leader China PTFE Coated Fiberglass Thread, PTFE sewing thread,PVDF Multi Filament  manufacturer with high quality and reasonable price. Welcome to contact us.

Benefits of our sewing thread made of PTFE:
NETT's fiberglass products are made from silica and alumina to form fiberglass. This makes them very resistant to high temperatures, mechanical resistance, chemical stability, oil and water resistance, insulation and heat insulation. These high temperature, heat-resistant fabrics are made from 9 or 12micron diameter fibers, which gives our products great flexibility and resistance to vibration and wear. This type of fiberglass fabric is economical, chemical resistant, strong, and withstands reasonable temperatures during use.



The specifications of PTFE Coated Fiberglass Thread produced by us are 2000D 2400D 2800D 3000D …….



Description:



PTFE coated glass fiber wire can withstand operating temperatures of about 1050 degrees Fahrenheit (520 degrees Celsius). Its continuous fiberglass filaments are heat, chemical, and strong. It is Teflon coated for easy sewing.


Features of NETTtex® PTFE Coated Fiberglass Thread:

Excellent high temperature resistance: For extended periods of time, polytetrafluoroethylene (PTFE) Coated Fiberglass Thread can endure temperatures as high as 520°C without melting or degrading.

Tensile strength: The market's longest-lasting thread is PTFE Coated Fiberglass Thread. For superior sewing performance, they are resistant to chemicals and friction.



Specification:



Type: PTFE Coated Fiberglass Thread

NO.

parameter

     Value

Test Temperature

Notes

1

Linear density

1500±50dtex

Ambient temperature

1350 D

2

Breaking strength

≥70N

<20ºC



3

Breaking tenacity

≥4.6cN/dtex

<20ºC



4

Elongation at break

≥4~10%

<20ºC



5

Heat-shrinkage rate

≤3%

260ºC /2h



6

Yarn

5





7

Average mass per one meter

0.15g/m





8

Color

Brown





9

Net Weight/spool

800-1200g





10

Thread Diameter

0.24





11

Length per kilometers

5300-8000M



without knots



Type: PTFE Coated Fiberglass Thread

NO.

parameter

     Value

Test Temperature

Notes

1

Linear density

2200±60dtex

Ambient temperature

2000D

2

Breaking strength

≥95N

<20ºC



3

Breaking tenacity

≥4.3cN/dtex

<20ºC



4

Elongation at break

≥4~10%

<20ºC



5

Heat-shrinkage rate

≤3%

260ºC /2h



6

Yarn

6





7

Average mass per one meter


0.22g/m





8

Color

Brown





9

Net Weight/spool

800-1200g





10

Thread Diameter

0.4





11

Length per kilometers

3600-5400M



without knots



Type: PTFE Coated Fiberglass Thread

NO.

parameter

     Value

Test Temperature

Notes

1

Linear density

2900±150dtex

Ambient temperature

2600D

2

Breaking strength

≥117N

<20ºC



3

Breaking tenacity

≥3.96cN/dtex

<20ºC



4

Elongation at break

≥4~10%

<20ºC



5

Heat-shrinkage rate

≤3%

260ºC /2h



6

Yarn

7





7

Average mass per one meter


0.29g/m





8

Color

Natural white





9

Net Weight/spool

800-1200g





10

Thread Diameter

0.48





11

Length per kilometers

2700-4100M



without knots



Application of NETTtex® PTFE Coated Fiberglass Thread:



Filter bag: For sewing dust filter bags composed of different materials like PTFE, fiberglass, PPS, Nomex, P84, and others, PTFE Coated Fiberglass Thread is a common option. Numerous industries utilize these filter bags to gather and remove dust, particles, and other contaminants. PTFE Coated Fiberglass Thread is a great option for guaranteeing the longevity and efficiency of these filter bags because of its superior temperature and chemical resistance.

Sewing in high-temperature environments: Because it can withstand temperatures of 520°C, PTFE Coated Fiberglass Thread is an excellent choice for sewing in hot conditions. This makes it ideal for processes involving high temperatures. In addition, the material is well suited for use in high-temperature environments, as it has significant resistance to hydrolysis, oxidation and corrosion. By using PTFE Coated Fiberglass threads, the durability of the sewn object or equipment and the ability to withstand harsh manufacturing environments are ensured.


Several reasons to choose NETTtex®PTFE Coated Fiberglass Thread by NETT:



1. Among the specifications we can produce are 1350D, 2000D, 2900D, among others.

2. We accept customized PTFE Coated Fiberglass Thread in various colors.  If you need help determining the best yarn or thread specific to your application, please contact us, we would be happy to help!

3. The PTFE Coated Fiberglass Thread specification of 2000D is relatively common, and the weight of each rolls is around 1200 g, with a length of approximately 5500 m. Our products are packed in our own LOGO cartons, each weighing 18kg. We can pack according to the packing details you provided.  To ensure the safety and security of the product during transportation, each carton is individually packaged and secured to a plywood pallet.  This packaging method ensures that the product remains in good condition and reaches its destination intact.

4. NETT holds 19 independent intellectual property rights, including 4 invention patents.

By participating in the Madrid international trademark registration agreement, the trademark "NETTtex®" international trademark registration; in addition, the company also has "NETT ®", "BLOCK ®", FLONtex® and other products registered trademarks;

Since 2019, NETT has been recognized as a national high-tech enterprise in China and a science and technology private enterprise in Jiangsu Province. NETT is also a member unit of China Industrial Textile Association and China Environmental Protection Industry Association.



NETT has passed the ISO9000 quality management system and the ISO14000 environmental management system certification. The enterprise adheres to the brand development route, taking the high-end demand of the international market as the positioning. At present, the products have been involved in environmental protection, medical equipment, biological pharmaceutical, chemical, food, sports goods, building materials and other fields, and has achieved a stable market share.
